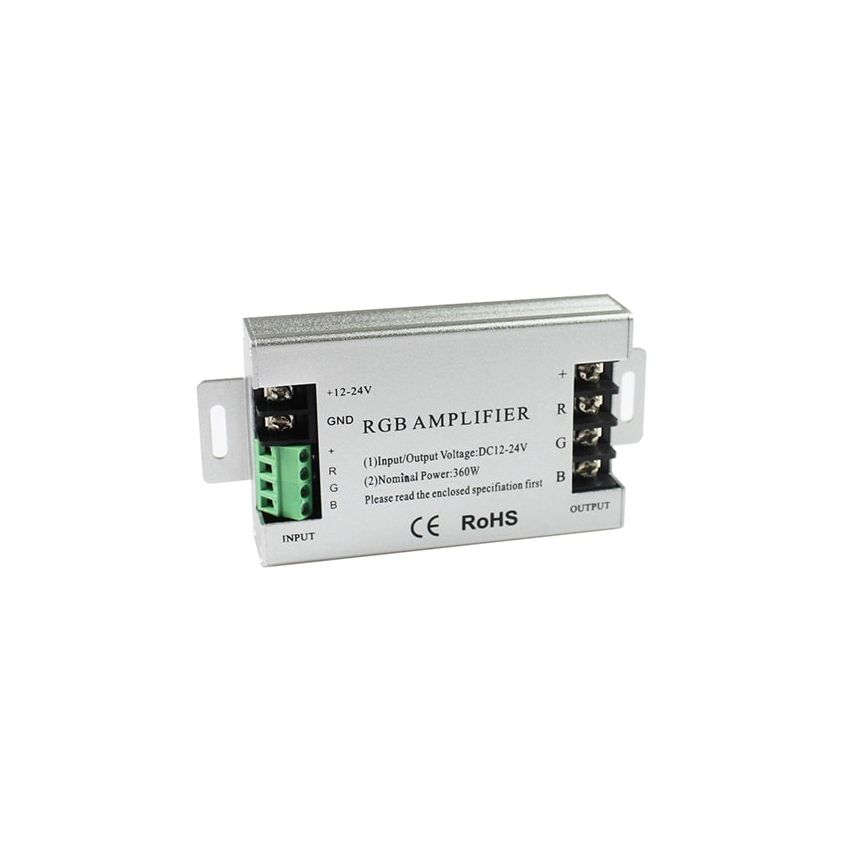

10A/CH RGB Amplifier-ALS

SKU
Booster:ALS-12-24V-10ACH-RGB
In stock
Ships next day. Call us for in-store availabilty.
$46.00
-
+
Overview

Features

  • Increases capacity of RGB Controllers
  • Multiple amplifiers can be used with the same controller
  • Works with any 4 wire Low Voltage RGB light
  • 160' Recommended Max Load For 12V 30/m Color Changing Strip
  • 80' Recommended Max Load For 12V 60/m Color Changing Strip

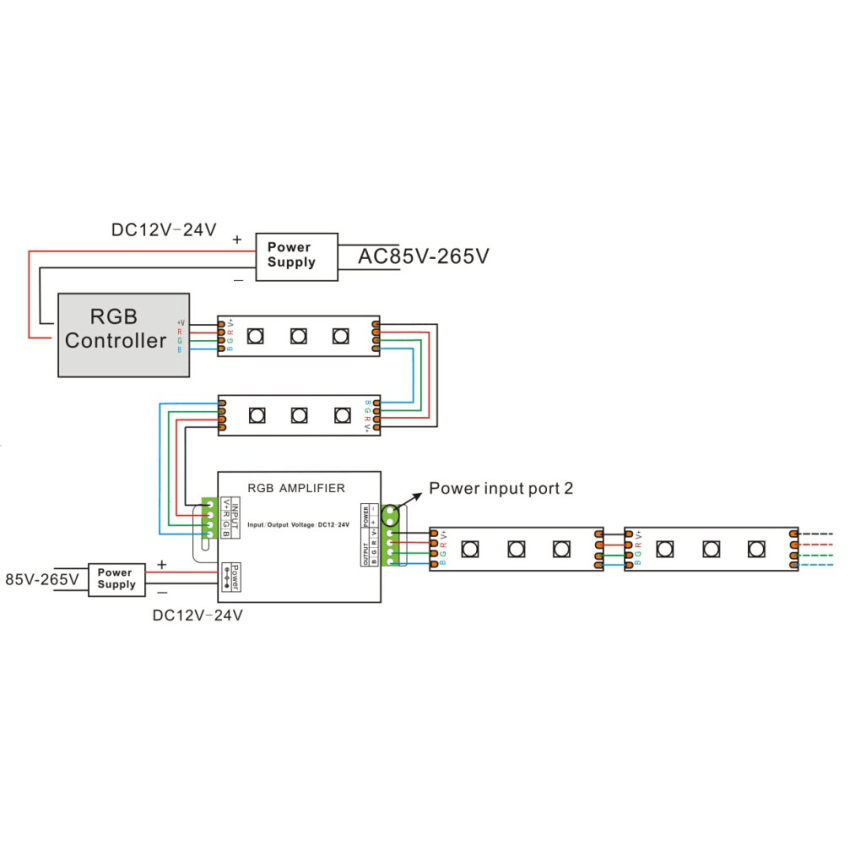

Wiring Guide


10A/CH RGB Amplifier-ALS
Model:  ALS-12-24V-10ACH-RGB
Input Voltage: 12-24V DC
Output Current: 30A (10A x 3CH)
Output Power: 12V - 360W/24V - 720W
Size: 5"x2.5"x1"
Static Power: <1W
