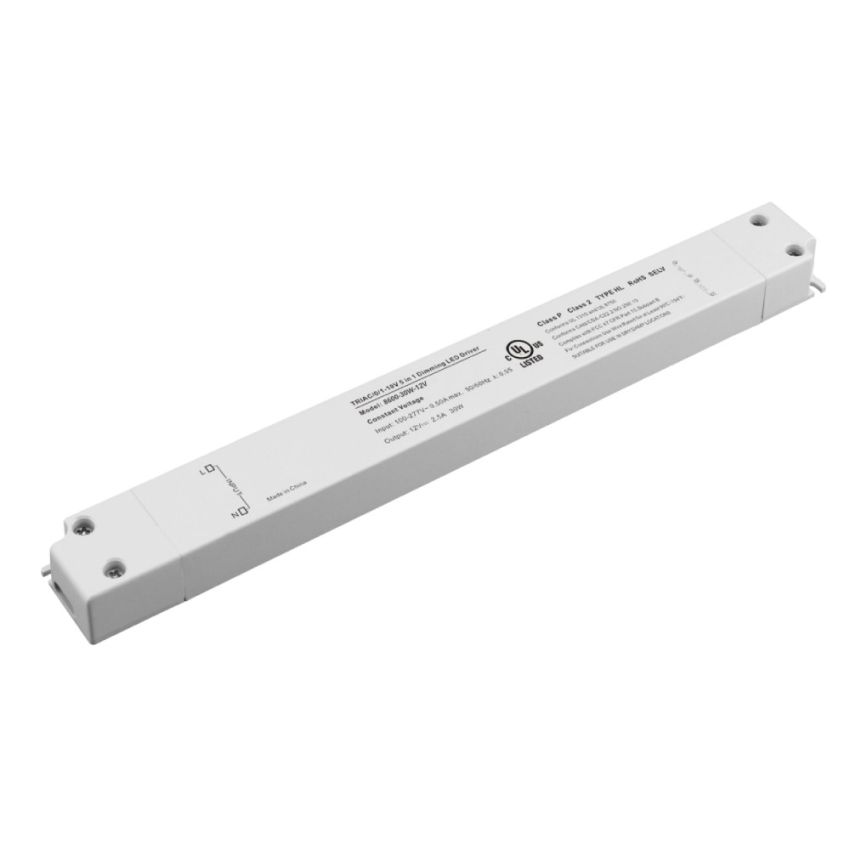

30W 5 in 1 (0-10V) Slim Dimmable Transformer-RCH
SKU
Power Supply:RCH-PSS-30W
In stock
Ships next day. Call for in-store availabilty.
Only %1 left
As low as
$52.25
Overview
Features
- 0-10V power supply
- Compatible with Forward Phase, Reverse phase, Triac, MLV, ELV dimmers
- Class 2 Power Supply
- 0-100% dimming range with no load requirement
- Universal AC input 100-277VAC
- Rated for Damp Location
30W 5 in 1 (0-10V) Slim Dimmable Transformer-RCH
| Model: | RCH-PSS-30W | |
| Wattage: | 30W | |
| Input Voltage: | 100-277VAC | |
| Input Current: | 0.5A@100VAC | |
| Output Voltage: | 12VDC | 24VDC |
| Output Current: | 2.5 A | 1.25 A |
| Frequency: | 47-63 Hz | |
| Efficiency: | 80% | |
| Dimensions: | 10.24" x 1.18" x 0.73" | |
| IP Rating: | Damp | |
| Listing: | UL Listed / Class 2 | |
| Warranty: | 5 Years | |
| shipping_weight | 0.500000 |
|---|
