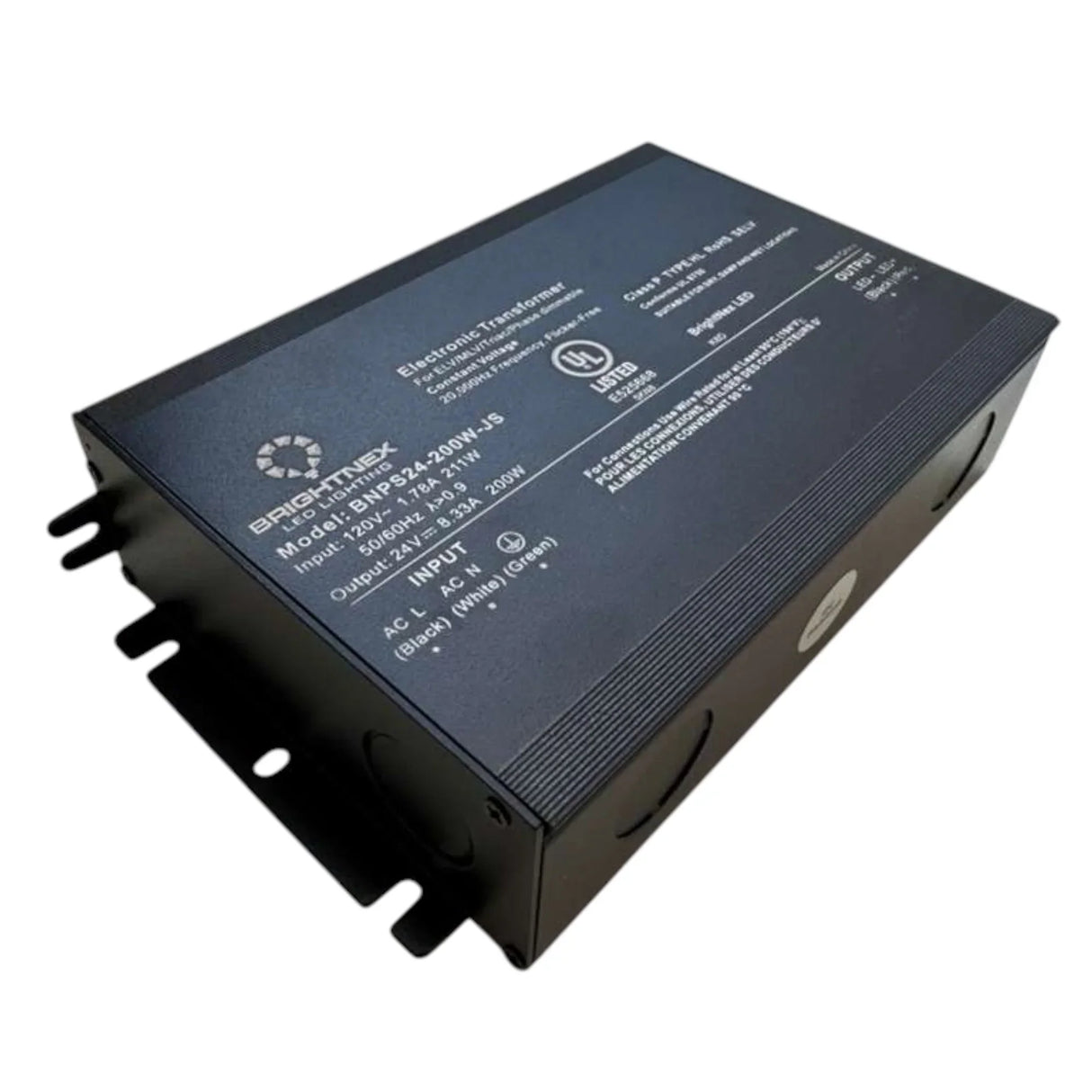

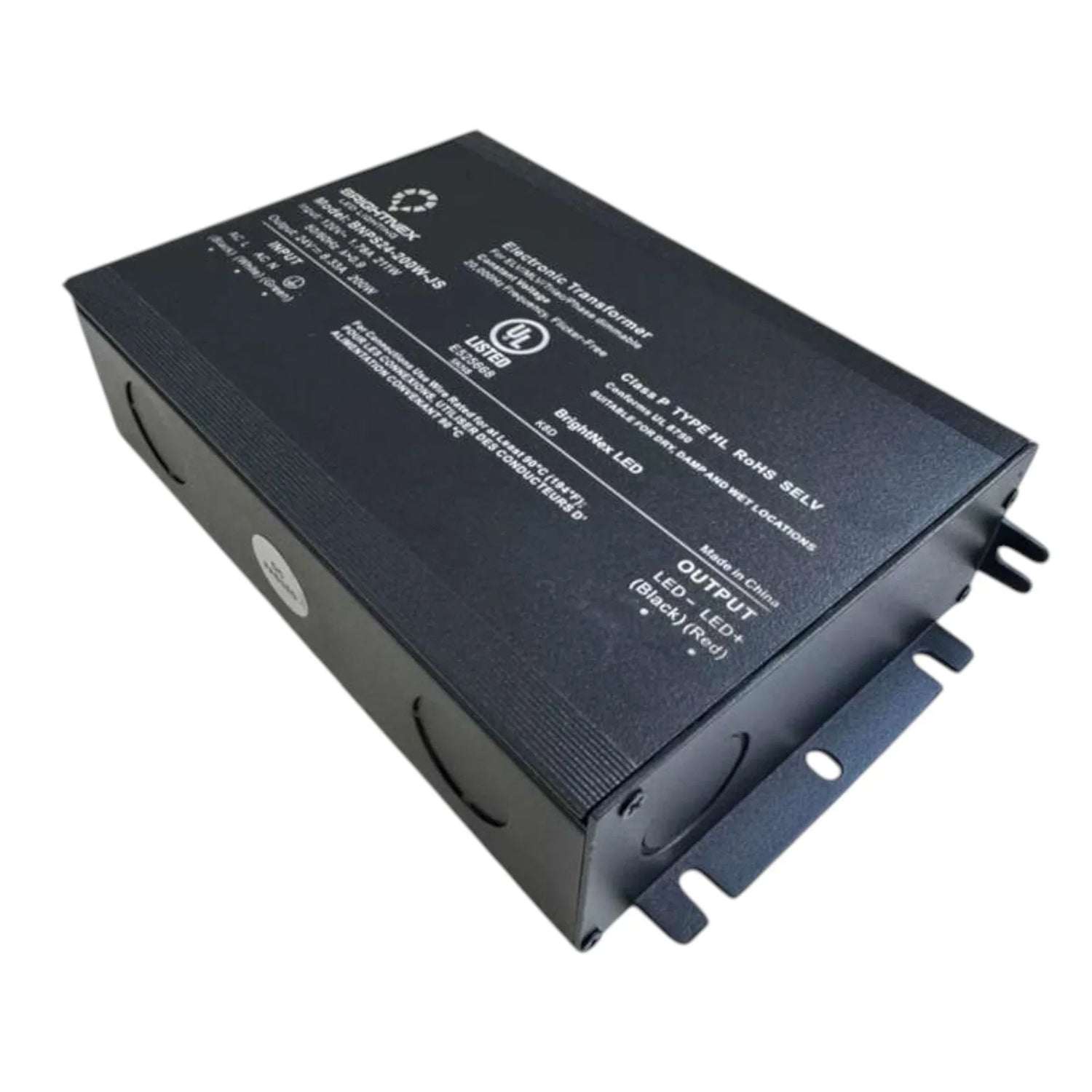

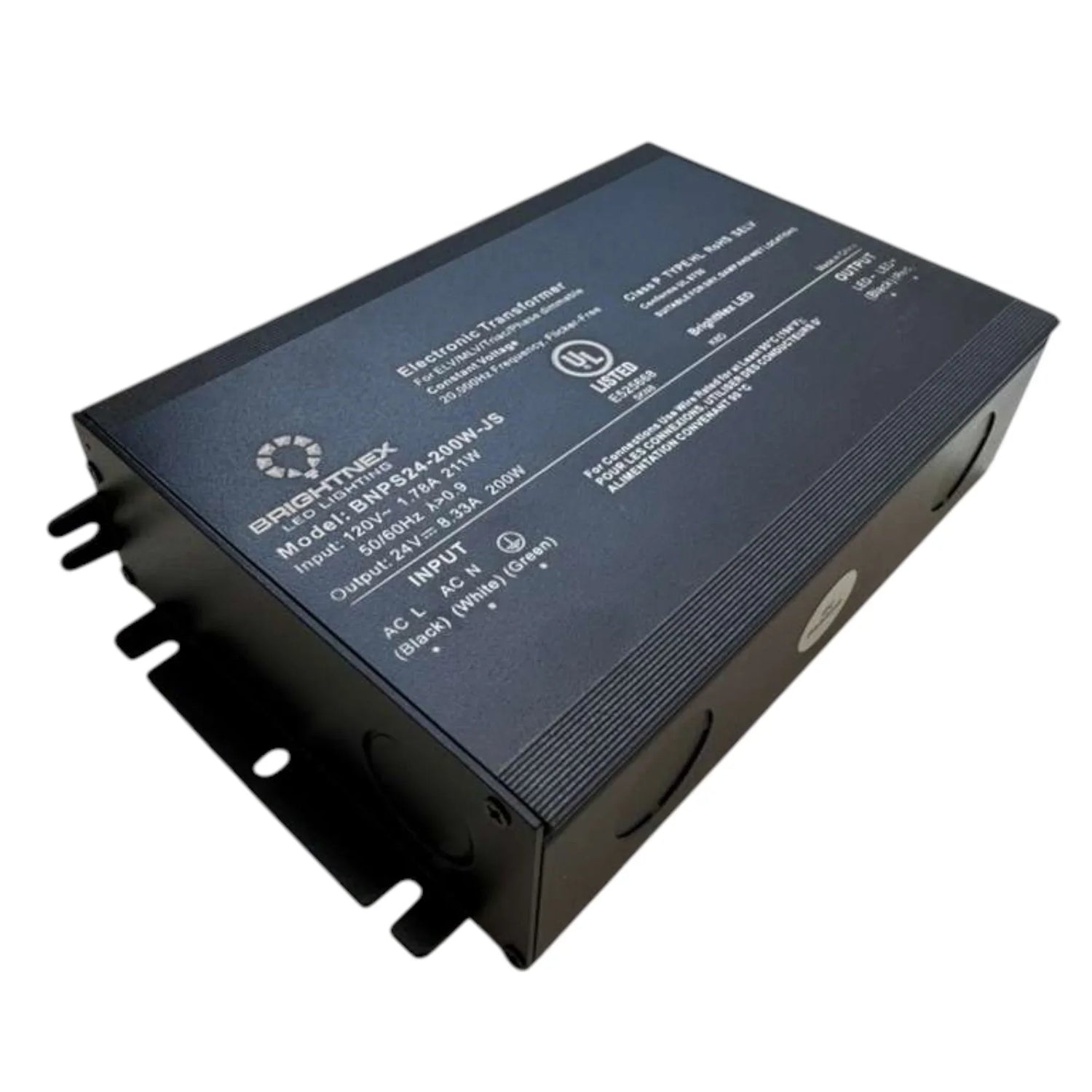

24V 200W Dimmable LED Transformer TRIAC/ELV/MLV UL Class 2 - BRIGHTNEX LED LIGHTING
Regular price
$174.00
Unit price
Shipping calculated at checkout.
SKU:
Power Supply:BRT-PSQ-200W-24V
Features
- Delivers efficient 90% power conversion at full load
- Supports TRIAC, ELV, and MLV dimming systems for versatile applications
- Rated for wet locations, suitable for outdoor and indoor installations
- Operates smoothly from 10% to 100% load with high power factor (>0.9)
- UL Class 2 rating ensures streamlined code compliance and safety
- Sealed aluminum enclosure protects against moisture and dust
24V 200W Dimmable LED Transformer TRIAC/ELV/MLV UL Class 2 - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Guarantee safe & secure checkout
24V 200W Dimmable LED Transformer TRIAC/ELV/MLV UL Class 2 - BRIGHT...
Regular price
$174.00
Unit price
SKU:
Power Supply:BRT-PSQ-200W-24V
Regular price
$174.00
Unit price
Shipping calculated at checkout.
24V 200W Dimmable LED Transformer TRIAC/ELV/MLV UL Class 2 - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Description

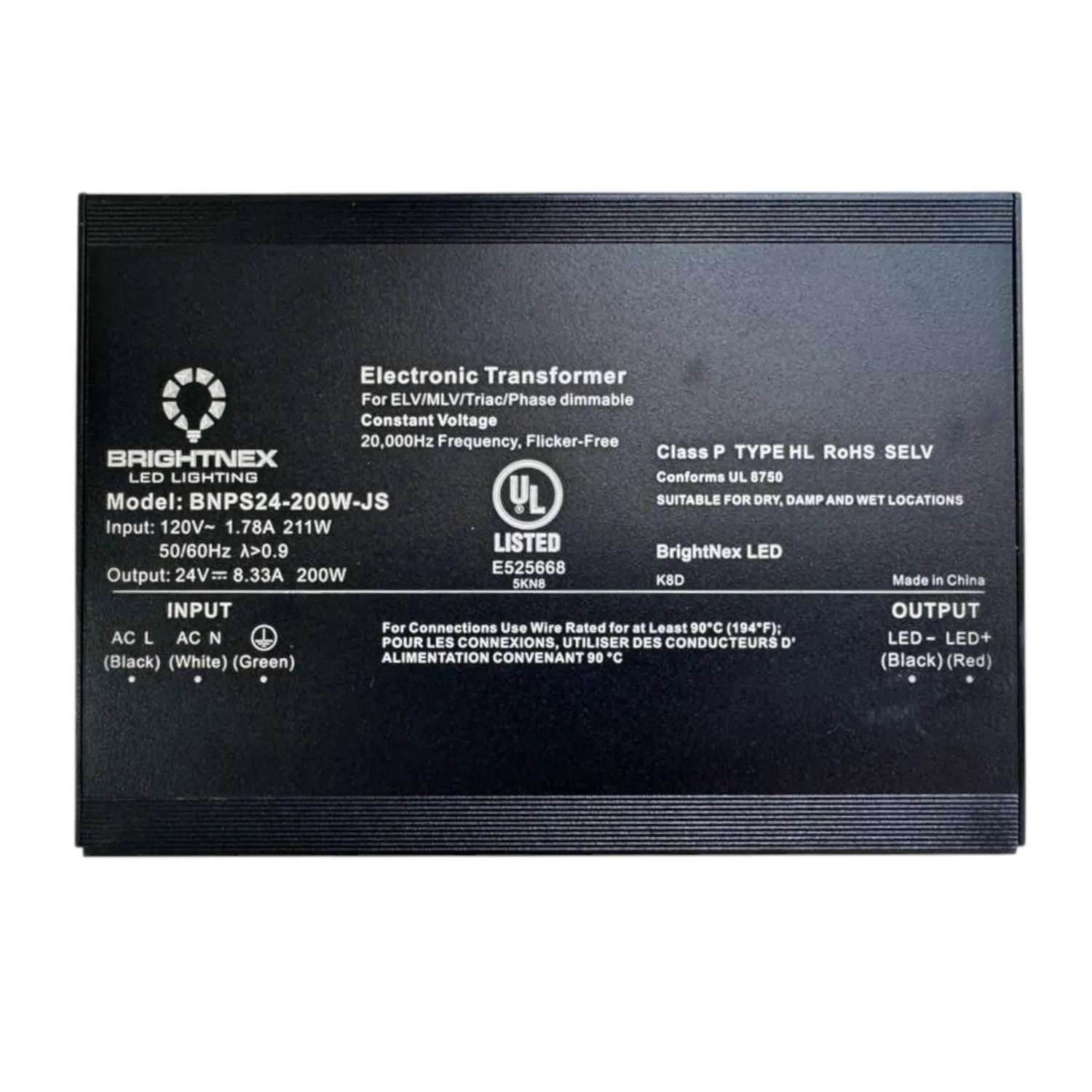

| Model: | BNPS24-200W-JSET |
| Output Voltage: | 24V DC |
| Output Power: | 200W |
| Output Current: | 8.34A |
| Input Voltage: | 120V AC |
| Frequency: | 50/60Hz |
| Efficiency: | 90% @ full load |
| Power Factor: | >0.9 |
| THD: | < 20% @ 100% load |
| Voltage Tolerance: | ±1.5V |
| Leakage Current: | < 0.5mA @ 120V |
| Load Range: | 10% – 100% |
| Protections: | Short Circuit – hiccup mode, auto-recovery Overload – hiccup mode, auto-recovery |
| Operating Temp: | -40°F to +140°F (-40°C to +60°C) |
| Storage Temp: | -40°F to +194°F |
| Humidity: | 20–95% RH (non-condensing) |
| Certifications: | UL8750, FCC, ICES-005, Class P, Type HL, RoHS, REACH, SELV |
| Enclosure Rating: | Damp, Dry Location, Wet (Not for Submersion) |

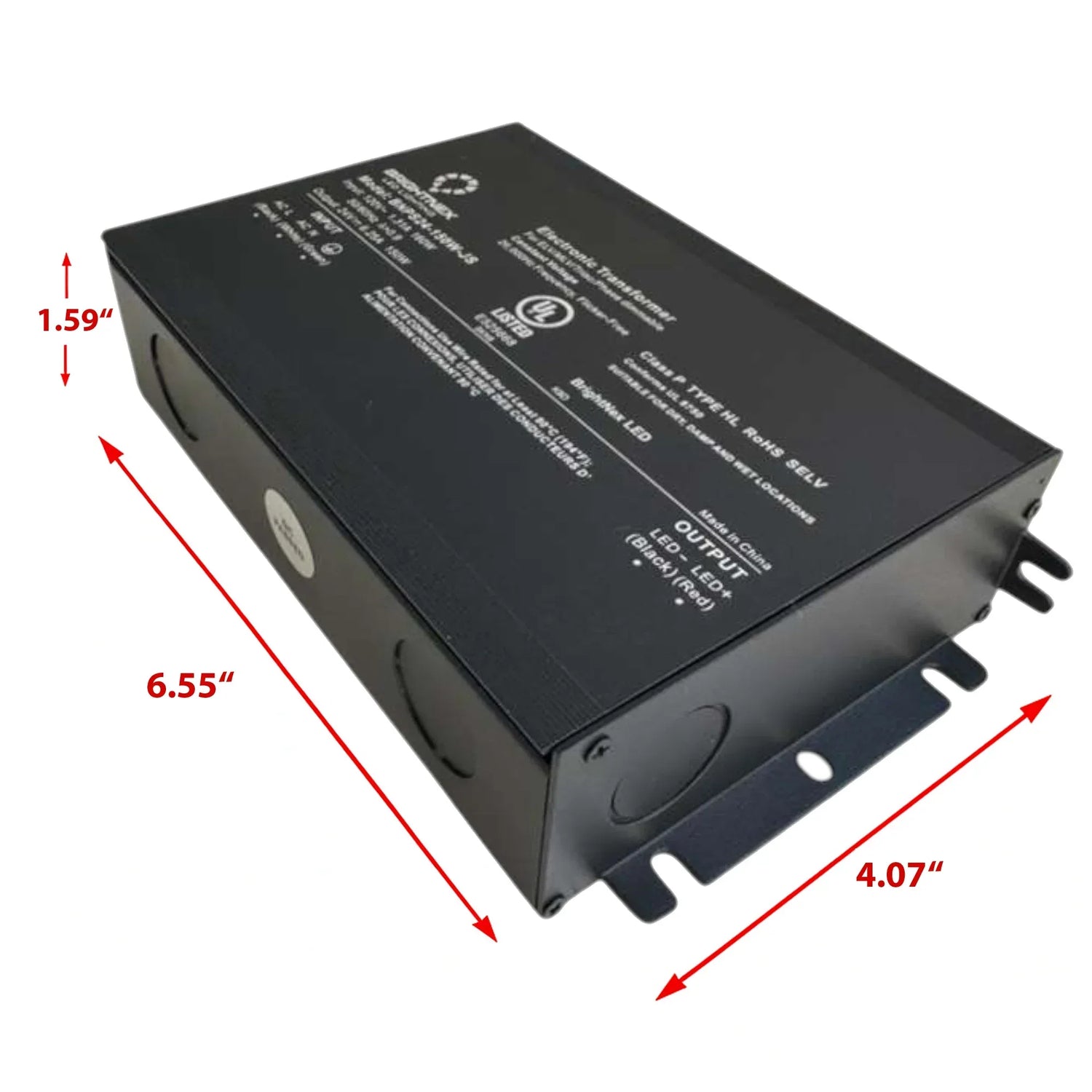

| Dimensions: | 6.55" × 4.07" × 1.59" (L × W × H) |
