300W 24V LED Transformer TRIAC/ELV/MLV UL Class 2 Wet Rated - BRIGHTNEX LED LIGHTING
Regular price
$210.00
Unit price
Shipping calculated at checkout.
SKU:
Power Supply:BRT-PSQ-300W-24V
Features
- Delivers up to 300W of power for large LED loads
- Supports smooth 0-100% dimming via TRIAC, ELV, and MLV
- UL Class 2 wet-rated for reliable operation in various environments
- Features 90% efficiency and high power factor for energy savings
- Compatible with industry-standard wall dimmers for easy installation
- Durable aluminum enclosure ensures long-lasting performance
300W 24V LED Transformer TRIAC/ELV/MLV UL Class 2 Wet Rated - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Guarantee safe & secure checkout
300W 24V LED Transformer TRIAC/ELV/MLV UL Class 2 Wet Rated - BRIGH...
Regular price
$210.00
Unit price
SKU:
Power Supply:BRT-PSQ-300W-24V
Regular price
$210.00
Unit price
Shipping calculated at checkout.
300W 24V LED Transformer TRIAC/ELV/MLV UL Class 2 Wet Rated - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Description
| Model: | BNPS24-300W-JSET |
| Output Voltage: | 24V DC |
| Output Power: | 300W |
| Output Current: | 12.5A |
| Input Voltage: | 120V AC |
| Frequency: | 50/60Hz |
| Efficiency: | 90% @ full load |
| Power Factor: | > 0.9 |
| THD: | < 20% @ 100% load |
| Voltage Tolerance: | ±1.5V |
| Leakage Current: | < 0.5mA @ 120V |
| Load Range: | 10% – 100% |
| Protections: | Short Circuit – hiccup mode, auto-recovery Overload – hiccup mode, auto-recovery |
| Operating Temp: | -40°F to +140°F (-40°C to +60°C) |
| Storage Temp: | -40°F to +194°F |
| Humidity: | 20–95% RH (non-condensing) |
| Certifications: | UL8750, FCC, ICES-005, Class P, Type HL, SELV, RoHS, REACH |
| Enclosure Rating: | Dry, Damp, Wet Location (Not for Submersion) |

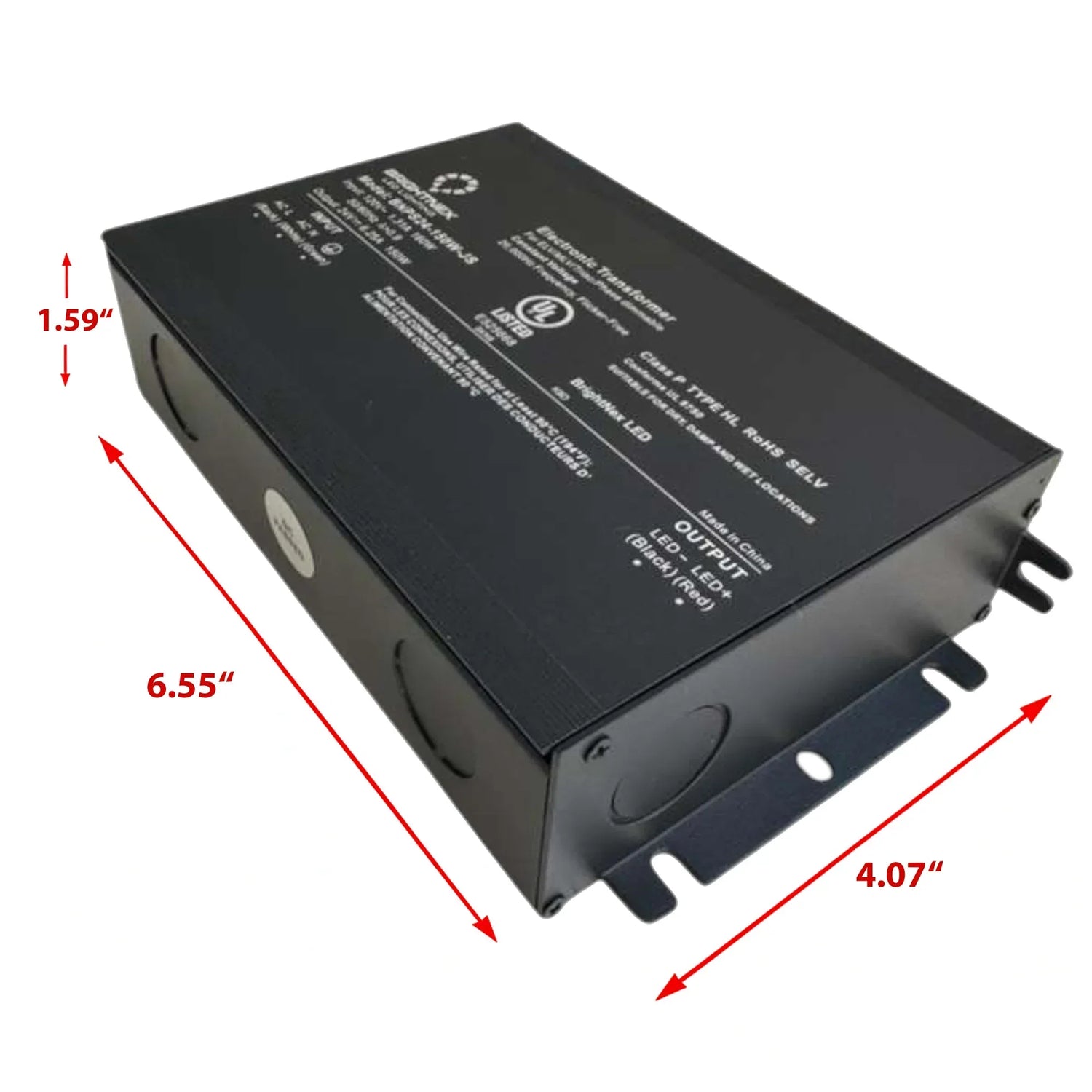

| Dimensions: | 6.55" × 4.07" × 1.59" (L × W × H) |
