96W 24V Constant Voltage Dimming Transformer - BRIGHTNEX LED LIGHTING
Regular price
$89.00
Unit price
Shipping calculated at checkout.
SKU:
Power Supply:BRT-PST-24V-96W
Features
- Supports both TRIAC and 0-10V dimming protocols for versatile control
- Up to 84% efficiency at 24V DC output, ensuring energy savings
- Flicker-free operation across a 0.1–100% dimming range
- UL Listed, FCC certified, and compliant with multiple safety standards
- Robust iron housing with integrated junction box for secure installation
- Suitable for dry, damp, and wet environments without submersion concerns
96W 24V Constant Voltage Dimming Transformer - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Guarantee safe & secure checkout
96W 24V Constant Voltage Dimming Transformer - BRIGHTNEX LED LIGHTING
Regular price
$89.00
Unit price
96W 24V Constant Voltage Dimming Transformer - BRIGHTNEX LED LIGHTING is backordered and will ship as soon as it is back in stock.
Description
| Model: | BNPS24DE-96W |
| Output Power: | 96W |
| Output Voltages: | 24V DC @ 4A |
| Input Voltage: | 100–277V AC, 50/60Hz |
| Efficiency: | Up to 84% @ 120V AC (24V) |
| Power Factor: | > 0.9 |
| THD: | < 20% @ full load |

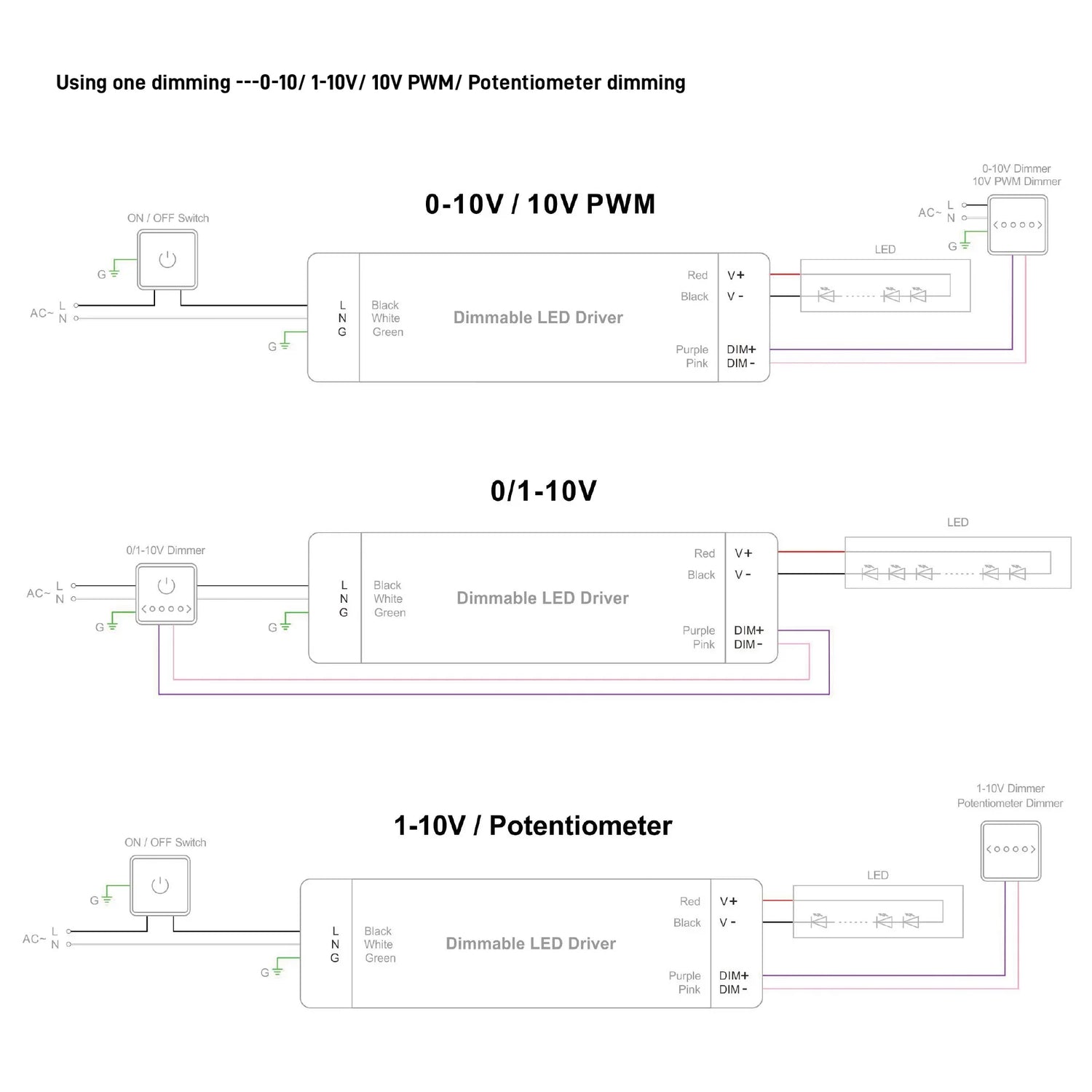

| Dimming Types: | TRIAC / ELV / MLV (forward & reverse phase) 0-10V / 1-10V / 10V PWM / Potentiometer |
| Dimming Range: | 0.1–100% (PWM, flicker-free) |
| Certifications: | UL / cUL, FCC, Class 2, Type HL, SELV, RoHS, UL8750 |
| Protection: | Short circuit (auto-recovery) Overload (≥110%) Over-temperature (shutdown @ 100°C ±10°C, auto-recovery) |

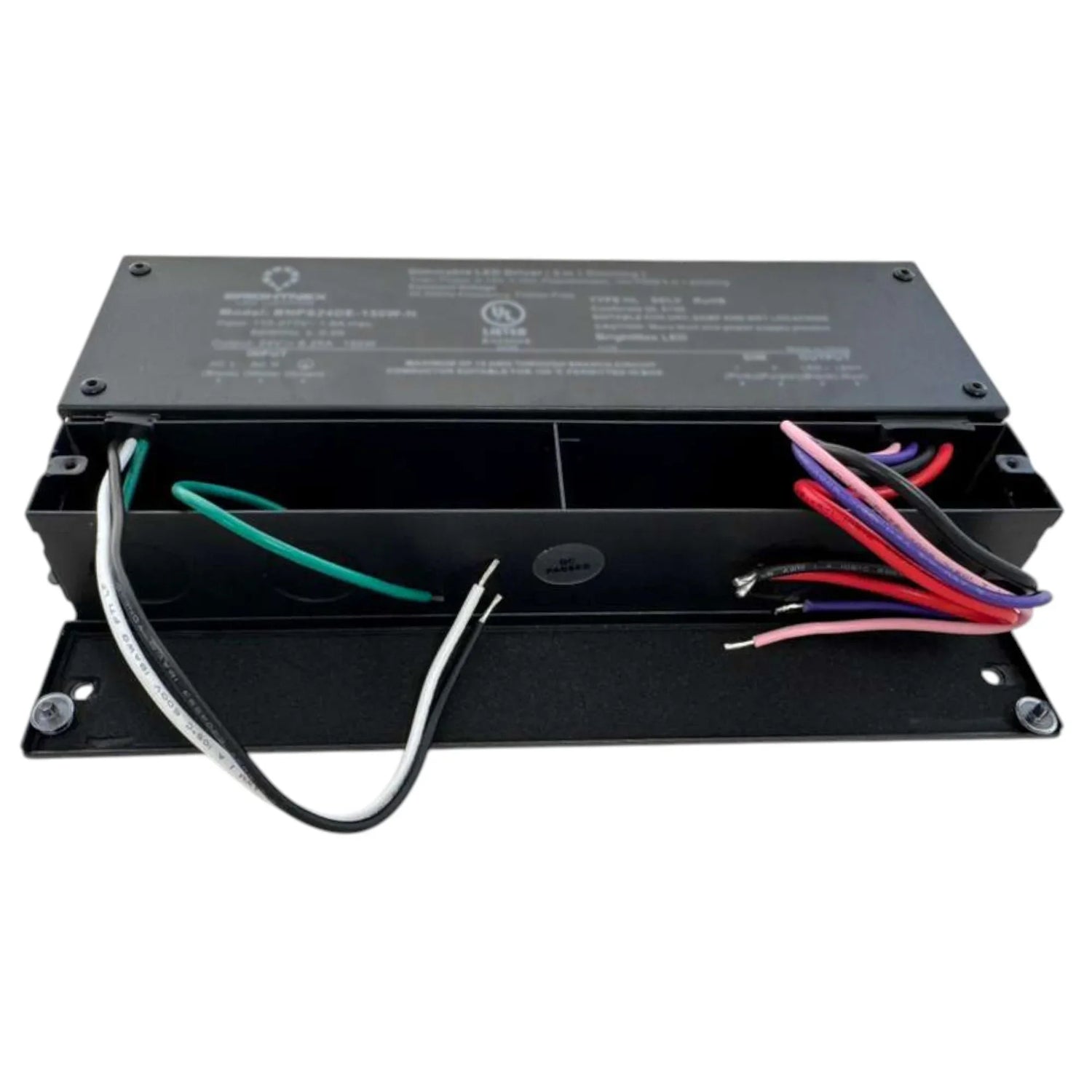

| Junction Box: | Integrated, with wiring knockouts |
| Environment: | Suitable for dry, damp, and wet locations (Not for Submersion) |
| Cooling: | Natural convection |
